SHIMANO Dura-Ace BR-R9270 Disc Brake Caliper 2-Piston Small Parts
Regular price
$11.35
Couldn't load pickup availability
SHIMANO Dura-Ace BR-R9270 Disc Brake Caliper 2-Piston Small Parts
Original Shimano parts guarantee that all components work perfectly for optimum performance and maximum safety and longevity.
| ITEM NO. | SHIMANO CODE NO. | DESCRIPTION |
| 1 a. | Y8RD98010 | Flange flare nut unit (M9/black) for ST-R9270 |
| 1 b. | Y8RD98020 | Flare nut unit (M8/silver) for ST-R9180 |
| 2. | Y8JA98020 | Olive and connecter insert |
| 3. | Y8H198030 | TL-BH61 Shimano original tool (2 pcs.) |
| 4. | Y8JA98010 | Flare nut unit (M8/black) |

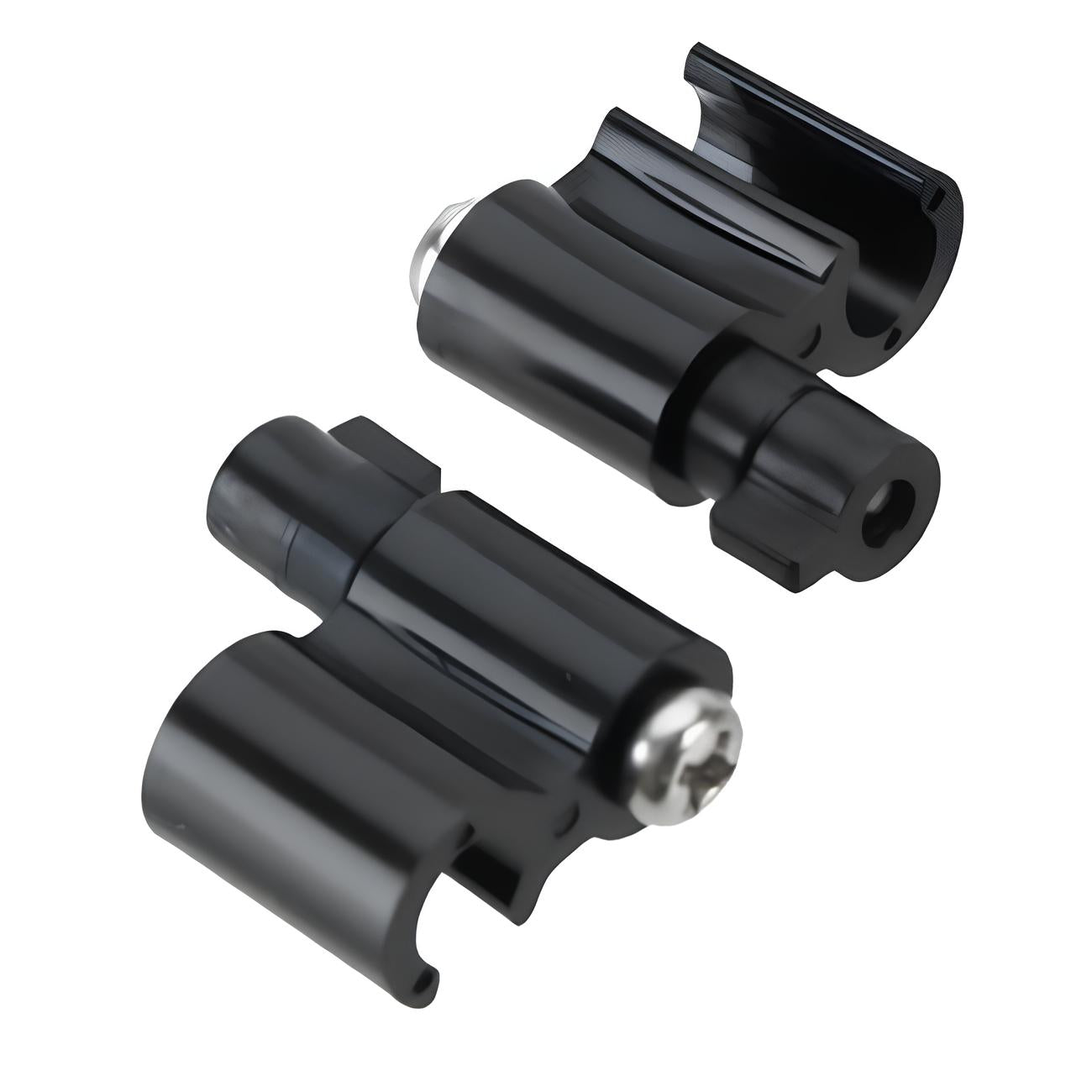

| 5. | Y83098040 | SM-HANG Hose supporter A and B |
| 6. | Y2HW08000 | Bleed screw cap |
| 7. | Y2HW10000 | Bleed boss cap |
| 8. | Y8PU98030 | Pad axle and snap retainer |
| 10. | Y8J716000 | Snap retainer |
| 11 a. | IBPK05TIRXA | K05Ti-RX Resin pad and spring (pair) |
| 12 a. | IBPK04TIMXA | K04Ti Metal pad and spring (pair) |
| 13 a. | EBPL05ARFA | L05A-RF Resin pad with fin and spring (pair) |
| 13 c. | EBPL05ARFBS | L05A-RF Resin pad with fin and spring (25 pairs) |
| 14 a. | IBPL04CMFA | L04C Metal pad with fin and spring (pair) |
| 15. | Y8N218000 | Pad spacer |
| 16. | Y8N207000 | Screw fixing pin |
| 17. | Y2HW06010 | Caliper fixing screw B2 |
| 18. | Y8N206000 | Caliper fixing screw B |
| 19. | Y8N230000 | Front caliper mount bracket |
| 20. | Y8PU07000 | Caliper fixing screw A |
| 21. | Y8N205000 | Snap ring |
| 22 a. | Y2HW08010 | Caliper fixing screw C2 for 20 mm rear mount thickness |
| 22 b. | Y2HW08020 | Caliper fixing screw C2 for 25 mm rear mount thickness |
| 22 c. | Y2HW08030 | Caliper fixing screw C2 for 30 mm rear mount thickness |
| 23 a. | Y8PU08010 | Caliper fixing screw C for 20 mm rear mount thickness |
| 23 b. | Y8PU08020 | Caliper fixing screw C for 25 mm rear mount thickness |
| 23 c. | Y8PU08030 | Caliper fixing screw C for 30 mm rear mount thickness |
| 25. | Y8NU02000 | Washer for R160 adapter |
| 26. | Y8NU03000 | Snap retainer |
| 27. | Y8K198010 | Lock ring and washer |
| 28. | Y12009230 | TL-LR15 Lock ring removal tool |
| 30. | Y13098000 | TL-FC36 Lock ring removal tool |
| 31 a. | Y83998020 | Mineral oil (100 ml) |
| 31 b. | Y83998030 | Mineral oil (500 ml) |
| 32. | Y2HW15000 | Bleeding spacer |
| 33. | Y8JA98026 | Connecting insert (100 pcs.) |
| 34. | Y8H298047 | Olive (100 pcs.) |
